Madeiras Rodrigues
Pine plywood
Multi-ply, bonded with waterproof WBP phenolic resin — from our own forest and certified for structural use in Europe.
12
thicknesses · 9–40 mm
3
formats
WBP
phenolic glue
CE 2+
structural use

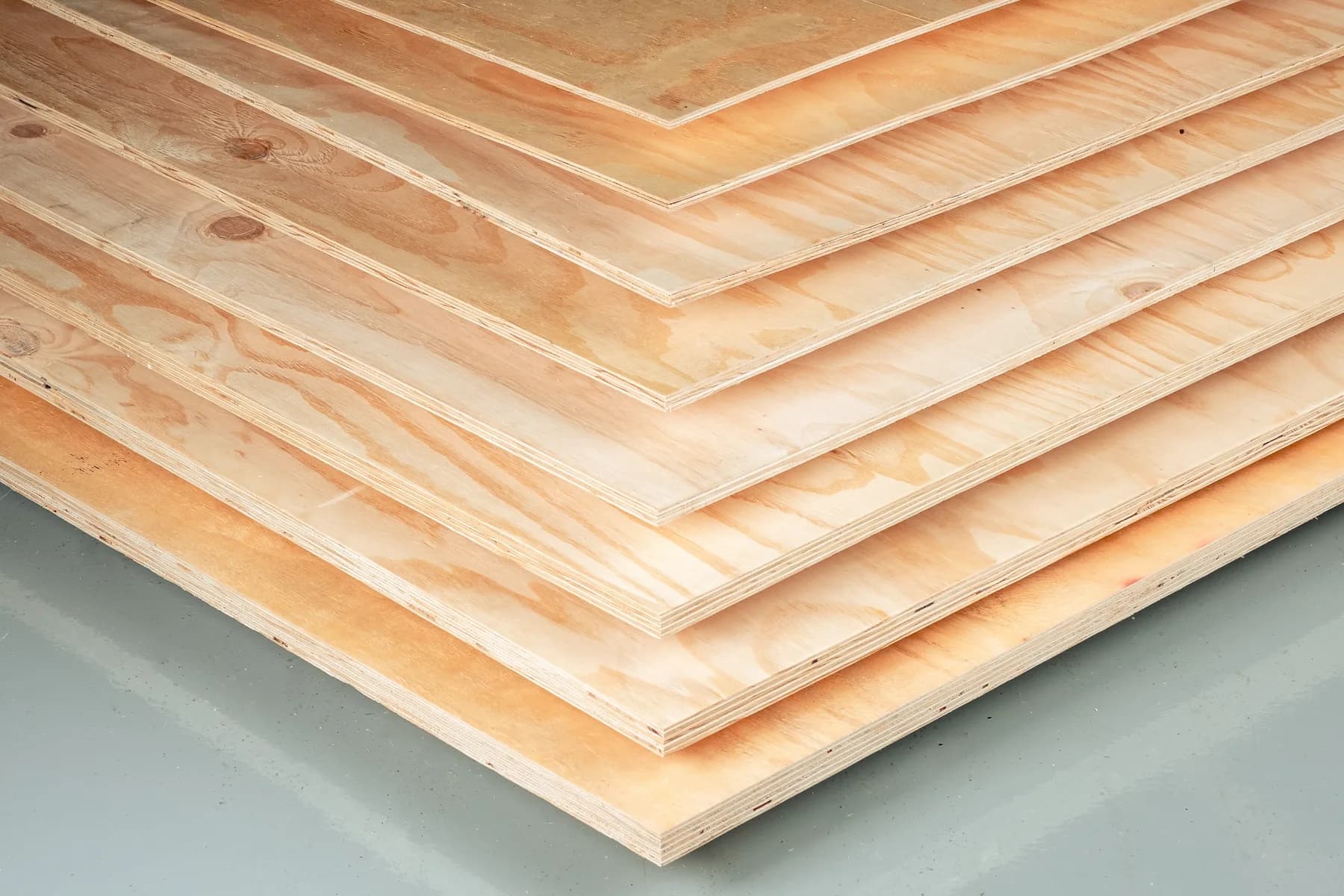

Multi-ply · veneer on veneer
The product
Multi-ply pine
Renewable plantation-pine panels with multiple cross-laid veneers bonded with phenolic (WBP) resin, delivering dimensional stability and moisture resistance. Ready for export and structural use.
Specifications
Formats & thicknesses
Formats (mm)
- 2440 × 1220
- 2500 × 1250
- 2400 × 1200
| Thickness | Plies |
|---|---|
| 9 mm | 3 |
| 12 · 15 mm | 5 |
| 18 · 20 · 21 mm | 7 |
| 24 · 25 · 27 mm | 9 |
| 30 · 35 mm | 11 |
| 40 mm | 13 |
Grades
Available grades
Datasheet
Pine plywood
Standard specification. Other dimensions, thicknesses and grades can be produced on demand.
- Raw material
- Pinus taeda / elliottii
- Composition
- Multi-ply
- Adhesive
- Phenolic resin (WBP)
- Standard
- CE 2+ · EN 314 / EN 310
- Applications
- Construction · packaging · furniture
- EU anti-dumping
- 0%
Gallery
Our panels around the world
Foto pendenteAplicação — Itáliacp-g1
Foto pendenteAplicação — Alemanhacp-g2
Foto pendenteObra — Europacp-g3
